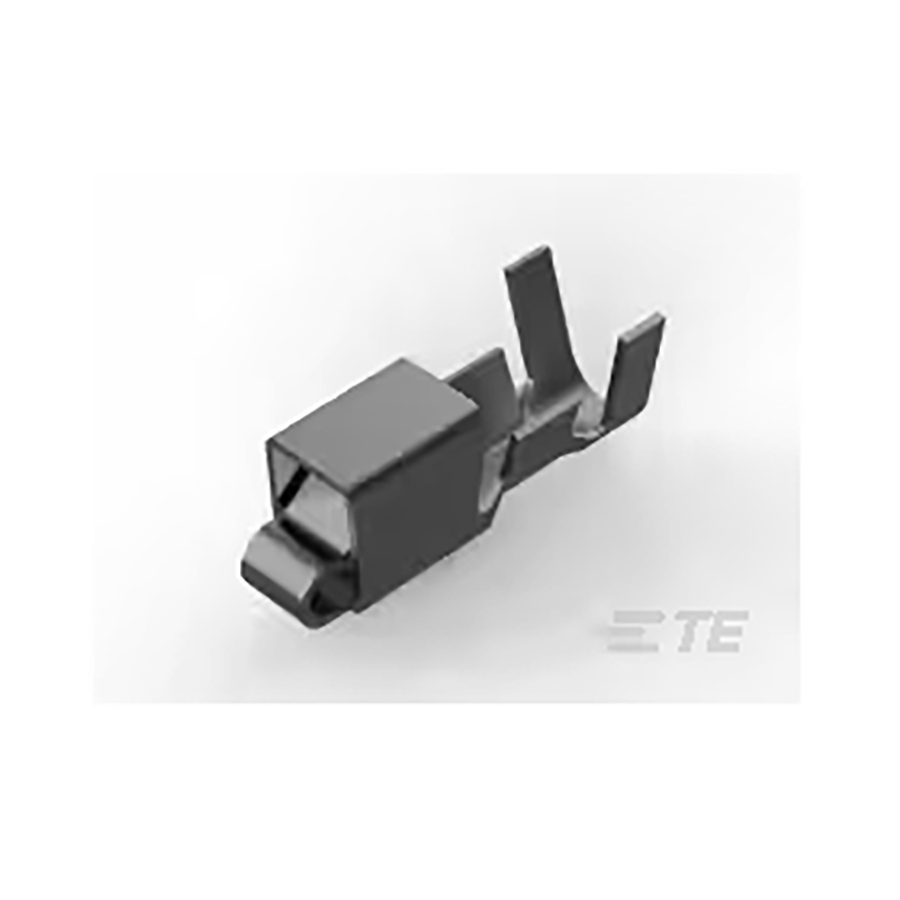

1123721-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1123721-2
Datasheet:
Description:
Headers and Wire Housings Cable Socket
| Parameter | Value |
|---|---|
| Length | 9.2 mm |
| Width | |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -25 °C |
| Height | 3.7846 mm |
| Material | Brass |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 4 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | |
| Current Rating | 8 A |
| Max Current Rating | 8 A |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Receptacle (Female) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 22 AWG to 18 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Contact Resistance | 20 mΩ |
| Contact Current Rating | 8 A |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 18 AWG |
| Insulation Diameter | 3 mm |
| Plating Thickness | 1.4 µm |
| Mating Post Length | |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Termination Post Length | |
| Termination Style | Crimp |
Stock: 23287
Distributors
pcbx
pcbxUnit Price$0.08635
Ext.Price$0.08635
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08635 | $0.08635 |
| 10 | $0.07267 | $0.72670 |
| 50 | $0.06655 | $3.32750 |
| 100 | $0.06095 | $6.09500 |
| 500 | $0.05545 | $27.72500 |
| 1000 | $0.05044 | $50.44000 |
| 3000 | $0.04526 | $135.78000 |
| 5000 | $0.04061 | $203.05000 |
